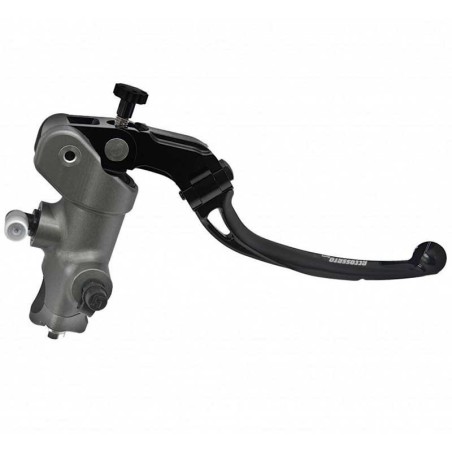

RADIAL BRAKE MASTER CYLINDER 19X18 ACCOSSATO

ACCOSSATO RADIAL BRAKE MASTER CYLINDER 19X18  (BI-DISC IMPIANTS)

ACCOSSATO Radial Brake Master Cylinder are used in the Superbike, Moto 2, Moto 3 and AMA Superbike championships, have a powerful braking and reduced passive stroke.

The feeling with the lever is immediate and the braking is always powerful, decisive and uncompromising;

This result was possible thanks to a reduction in the tolerances of mechanical machining and the coupling of the different parts of the pump.

The pump seals are made with a mixture coming from the F1 and guarantee with the use of DOT4 oil a high duration in time, it is not necessary any ordinary maintenance

• Forged Anodized Aluminum Pump in Hard Oxide
• Aluminum alloy lever machined from solid (CNC) and anodized
• Adjustable Lever (distance with handlebars)
• Application: Handlebars / Half-handlebars 22mm diameter
• Recommended oil: DOT 4 (not included)

RST LEVER OPTION

Technical diagram on the center distances of the brake pumps**

GREATER: with the same movement of the piston we will have a lower lever stroke, but the force necessary to operate the lever will be greater.
LESS: with the same movement of the piston we will have a longer lever stroke, but the force necessary to operate the lever will be less.

The package does not include: *

• Brake fluid tank
• Idrostop

NB: Check the size of the brake hose bolt that enters the pump, all the Accossato radials are M10x1 pitch

NB: The brake pipes mounted on pumps that were originally axial, may NOT be compatible with the Radial Pump assembly

* See '' ACCESSORIES '' for Radial Clutch Pumps & Mounting Accessories
** The diagram in the figure relates to the PRS brake pump. This concept applies to all approached brake pumps.
