Reduced price! GPS MULTIFUNCTION DASHBOARD WITH DATA ACQUISITION - PZRACING START PLUS View larger

GPS MULTIFUNCTION DASHBOARD WITH DATA ACQUISITION - PZRACING START PLUS

ST400-P

New product

PZRACING START PLUS Multifunction Dashboard with GPS 50Hz technology - precision 1 / 100s

More details

409,62 €

-15%

481,90 €

Add to wishlist

Data sheet

GPS receiver50 Hz - accuracy 1 / 100s
BacklightYes
Led ''Best Lap''Yes
Intertime improvement ledYes
Automatic track recognitionYes
World circuits databaseYes
Visualization of the estimated time at the finishYes
New circuit creation from PCYes - RacePro software
Management of up to 3 intermediate timesYes
Ideal time calculationYes
Trajectories storageNo
Data download - USB / Wi-FiYes
GPS speed displayYes
Max speed memorization for each lapYes
Engine hour meter2
Odometers2
BatteryBuilt-in lithium - 2000mA
12V power supplyYes
Shockproof / Waterproof containerYes
Dimensions135x94x33mm
OtherRPM led bar / Auto power off / Inserted gear indicator (optional)

More info

GPS MULTIFUNCTION DASHBOARD WITH DATA ACQUISITION - PZRACING START PLUS

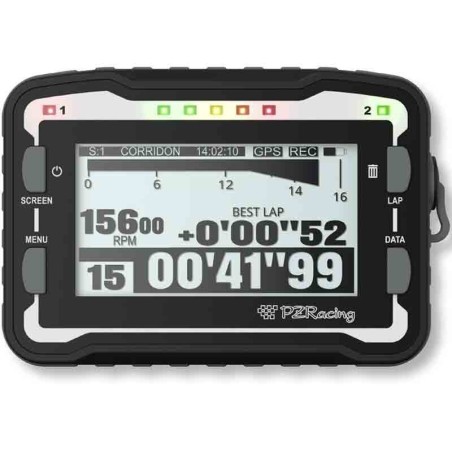

The PZRacing Start Plus Multifunction Dashboard thanks to the integrated 50Hz GPS receiver it will no longer be necessary to use the magnetic band or the uncomfortable infrared receivers on the track, and thanks to the preloaded tracks, Start Plus will automatically choose the correct track.

Start Plus is the perfect dashboard for all those vehicles that need to view data in real time but are not equipped with on-board electronics, such as karts, scooters, premoto 3, mini GP, etc.

The large 240×128 pixel display allows perfect visualization of all the main vehicle parameters in real time. All information can be viewed in 3 predefined screens and 2 fully configurable by the user.

The central led bar can be used both for viewing engine revolutions or in chrono mode, displaying the difference of tenths of a second from the best lap of the session. 2 alarm LEDs configurable in color, type of warning (fixed or flashing) and type of alarm (temperature, chrono, rpm, etc).

Possibility of displaying up to 2 temperatures (one NTC and one thermocouple) without the need for any expansion module, just buying the Y cable cod. SSY150 to be able to use both temperature sensors at the same time.

Data download wireless by Wi-Fi or by USB cable.

Built-in 2000mA lithium battery rechargeable via USB type C cable.
